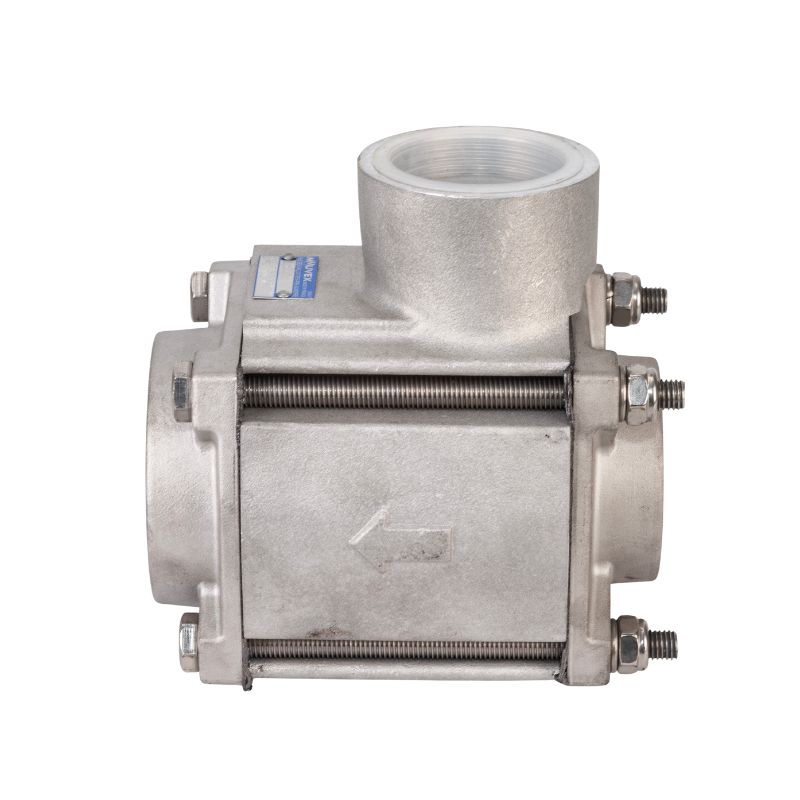

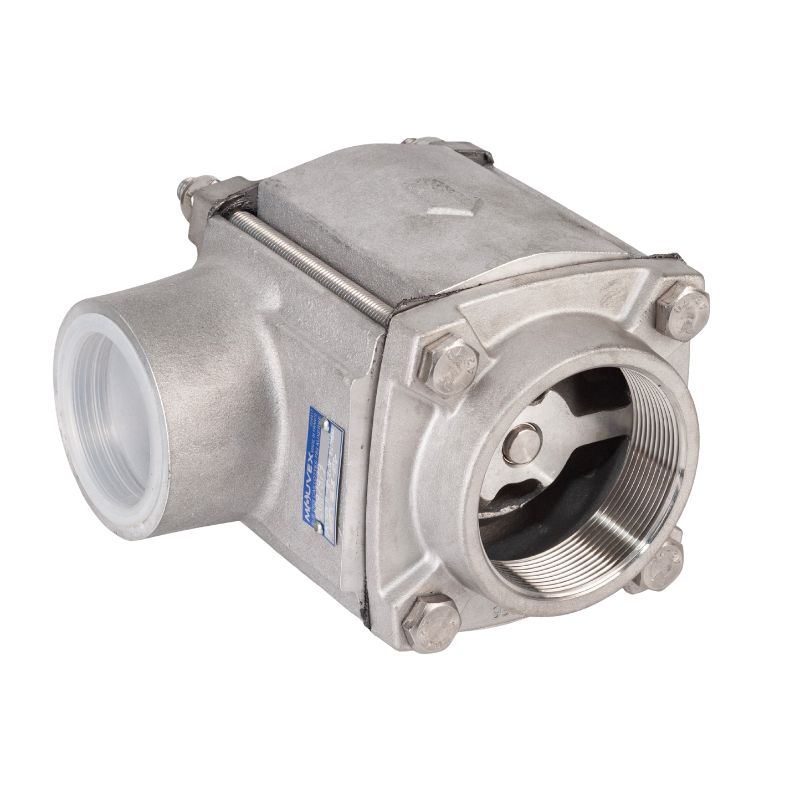

Mouvex Check Valve – 316495.00
The Mouvex check valve (part no. 316495.00) is a heavy-duty inline non-return valve designed for use in loading and unloading systems equipped with Mouvex compressors or pumps. Installed in the product or air line, the internal flap allows flow in one direction only and closes automatically when the flow stops or reverses.
By preventing backflow towards the compressor, pump or tank, the valve helps to protect internal components from mechanical damage, reduces the risk of contamination and contributes to a stable and safe operating pressure in the system. The robust cast housing with bolted cover and high-quality sealing elements ensures reliable tightness and long service life, even in demanding mobile and industrial applications.
This check valve is suitable as a main non-return valve in transfer lines and is supplied as a genuine Mouvex spare part for new installations, retrofits or replacement during overhaul.
Key features
-
Inline check (non-return) valve for Mouvex systems
-
Prevents reverse flow in product or air lines
-
Protects compressors, pumps and tanks from backflow and pressure shocks
-
Robust cast housing with bolted cover
-
Internal flap and quality seals for reliable tightness
-
Suitable for mobile (tank trucks) and stationary industrial applications
Typical applications
-
Loading and unloading lines on tank trucks with Mouvex equipment
-
Non-return function in pneumatic conveying and transfer systems
-
Replacement valve during service, repair or system upgrade
