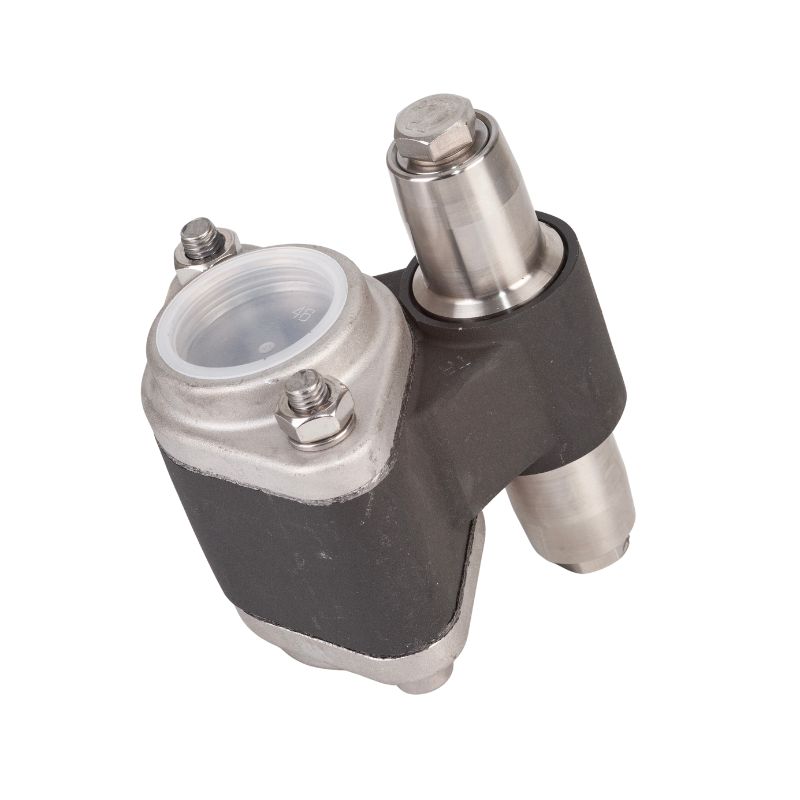

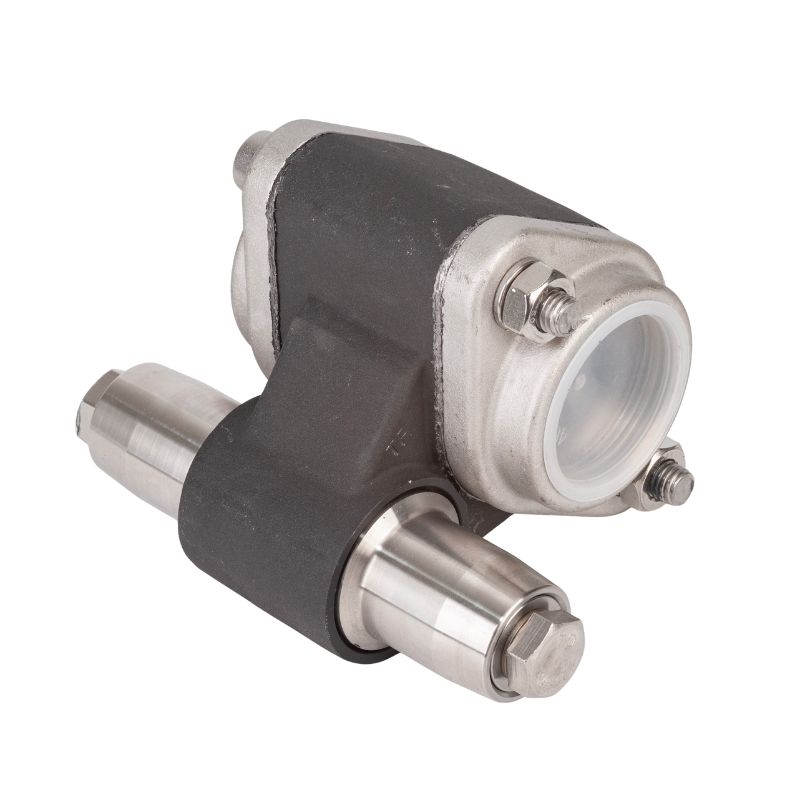

Mouvex B200 Check / Regulating Valve – 319726.00
The Mouvex B200 check / regulating valve (part no. 319726.00) is designed for the discharge side of Mouvex B200 screw compressors. Installed in the outlet line, it performs two key functions: it acts as a non-return (check) valve to block reverse flow and at the same time regulates the working pressure of the system according to the compressor installation.
When the compressor builds pressure, the valve opens progressively and maintains a stable discharge pressure downstream. When the compressor stops or pressure on the line side rises above the compressor side, the valve closes automatically, preventing air or product from flowing back towards the compressor. This protects internal components, reduces contamination risk and improves overall operating safety.
The compact housing with stainless-steel internals and quality sealing elements is designed for mobile tanker use and demanding industrial applications.
Key features
-
Check and pressure regulating valve for Mouvex B200 screw compressors
-
Prevents reverse flow in the discharge line
-
Maintains stable working pressure in the system
-
Robust body with corrosion-resistant internal components
-
Transparent inspection window for visual monitoring of operation
-
Genuine Mouvex component for new installations and replacement
Typical applications
-
Discharge lines on tank trucks equipped with Mouvex B200 compressors
-
Pneumatic loading and unloading systems requiring controlled pressure
-
Replacement of worn or damaged valves during overhaul or system upgrades
