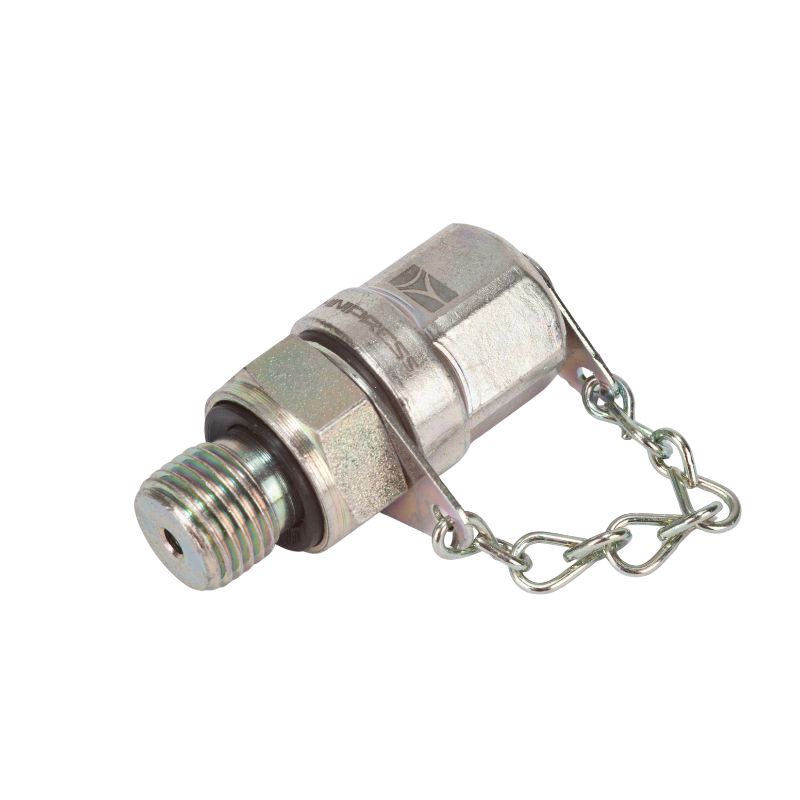

MPR1GG-B14 – Hydraulic Measuring Point M16x2 / BSP 1/4″ (GG Type)

The MPR1GG-B14 is a hydraulic measuring point with M16x2 male thread and BSP 1/4″ connection, designed for pressure monitoring and diagnostic testing in hydraulic systems.
Equipped with a protective cap and chain, it ensures leak-free connection and protection against dust or mechanical damage.
This measuring point allows for quick and safe connection of measuring hoses or manometers under pressure without fluid loss.

Technical details:

• Model: MPR1GG-B14

• Thread type: M16x2 (male)

• Connection: BSP 1/4″ GG

• Maximum working pressure: up to 630 bar

• Medium: Hydraulic oil, air, non-corrosive fluids

• Material: Zinc-plated steel

• Protective features: Cap and safety chain included

• Application: Hydraulic test points, pressure measurement, system diagnostics

Key features:

• Enables quick and safe pressure measurement

• Suitable for use under system pressure

• Corrosion-resistant and long-lasting design

• Easy connection and disconnection without leakage
