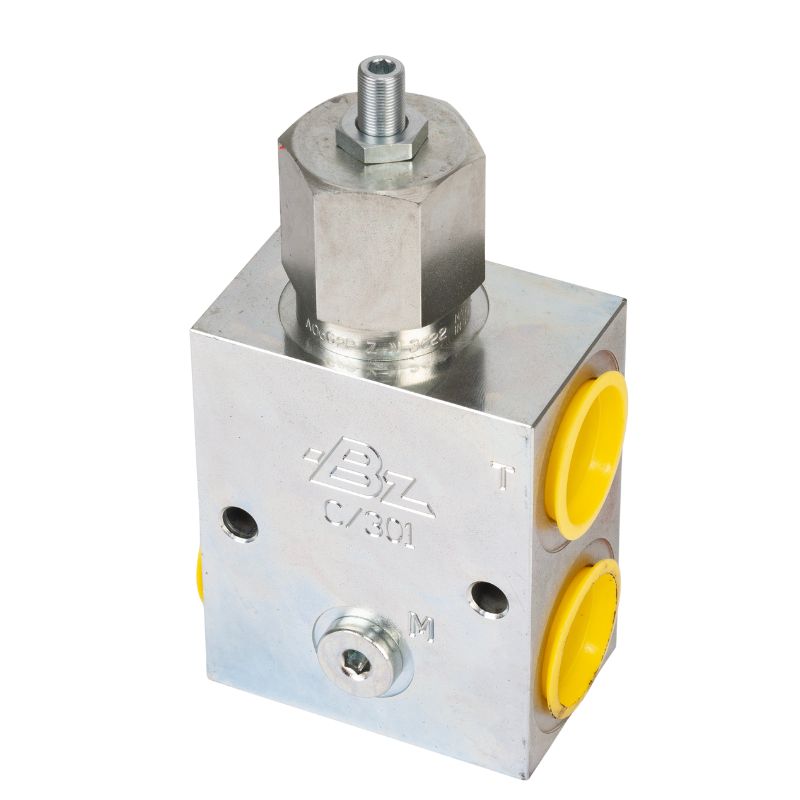

Bezares Pressure Relief Valve 1” 400 BAR

The Bezares 9063790 is a hydraulic pressure relief valve designed for heavy-duty hydraulic systems requiring precise pressure regulation up to 400 bar.
This valve ensures stable system performance by limiting the maximum pressure within the hydraulic circuit, protecting pumps, hoses, and other components from overload or potential failure.

The robust block-type design allows for direct installation into hydraulic lines with 1” BSP ports, and its high-quality zinc-coated body guarantees long-term corrosion resistance.
It’s a dependable choice for PTO-driven hydraulic systems, tipper trucks, and other demanding industrial or mobile applications.

Technical details:

• Part number: 9063790

• Brand: Bezares S.A. (Spain)

• Type: Pressure relief valve

• Connection: BSP 1″ female ports

• Max working pressure: 400 bar

• Flow rate: up to 120 L/min

• Adjustment range: factory set, adjustable with locking screw

• Body material: Zinc-plated steel

• Mounting type: Inline or block-mounted

• Temperature range: -25 °C to +80 °C

• Application: Hydraulic circuits for PTO, tipper, and auxiliary systems

Key features:

• Reliable overpressure protection up to 400 bar

• Adjustable setting for optimal system control

• Compact and durable design for easy integration

• Corrosion-resistant finish for extended life

• Compatible with Bezares hydraulic power units and valves
